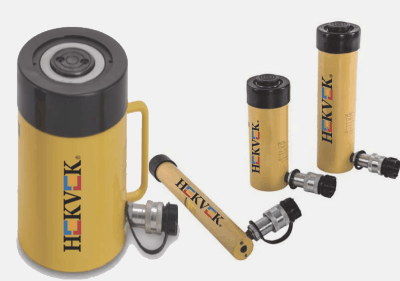

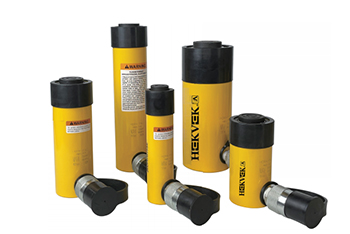

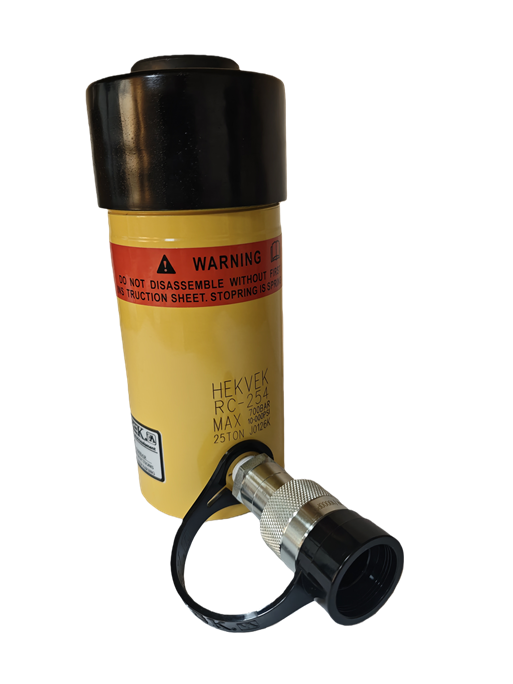

RC Series Single-acting Hydraulic Cylinder



Capacity:   5-100 tons

Stroke:    16-362 mm

Maximum Operating Pressure:   700 bar

●Single-Acting, Spring return Collar threads Cylinders.

●Equip with col lar threads and base holes (on most model), for greater flexibility in mounting onto fixture.(see page 12 for details)

●Equip with inner plunger threads (5 ton to 30 ton) for greater flexibility indesigning fixture or mould.

●Bronze alloy bearing on plunger to minimize scoring due to off-centre  load.

●Hard chrome plated plunger to resists wear and corrosion.

●Inner barrel wall are hard chrome plated to resists wear and corrosionin high humidity atmosphore.

●Equip with wiper seals to prevent ingress of dirt,

●Equip with stop-ring to prevent plunger blow-out and withstands full  "Dead-End load.，

●Powder coated finish for greater corrosion protection.

●Equip witn plastic cap to protect collar threads.

●Come with SQB-3/8UF female coupler & dust cap.
