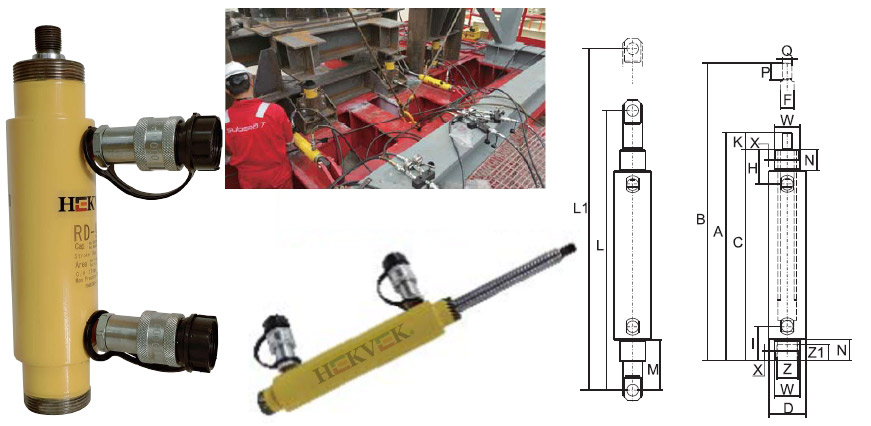

Capacity:   4-25 ton



Stroke :  29-260mm



Maximum Operating Pressure: 700 bar


● Double-acting operation develops force in both directions, provide maximum versatility.



● Designed for long life, the best choice for production applications.

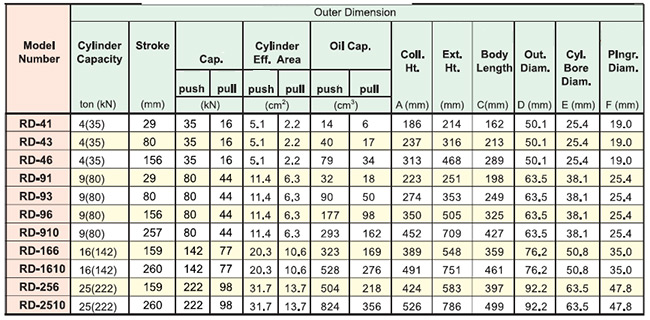

● Collar threads, plunger threads and base mounting holes for easy fixturing. (See chart).



● Hard chrome plated plunger resists wear and corrosion.



● Wiper rings protect the piston and bore from contamination.



● Powder coat finish for increased corrosion resistance and antirust.



●  Come with SQB-3/8UF female coupler & dust cap.
